※A laptop/PC with 802.11ac/5G wireless NIC is needed.

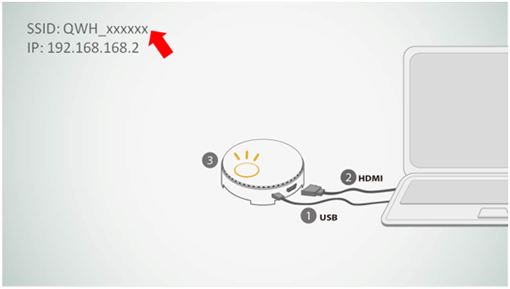

step1：While the QWH-1080R (receiver) is in standby mode, the SSID and IP is displayed on the upper left corner.

step2：Connect to the Receiver’s SSID, the password is the same as the SSID. Note that a PC with 5G wireless NIC card is required.

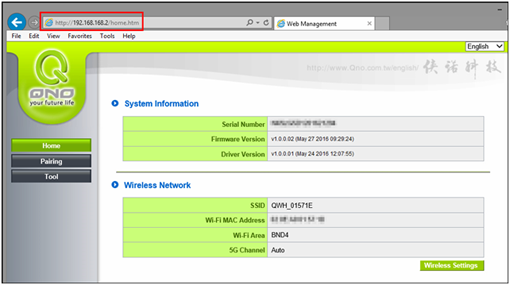

step3：Enter the IP address, 192.168.168.2, of the Receiver in a browser.
step4：Use “admin” for both the username and password.

Choosing a less occupied Wi-Fi channel can help with the video tearing/lagging or blank screens that are caused by Wi-Fi interference.

step1：Using a “wifi analyzer” app, can be downloaded from the Play Store, to scan the immediate area for the channels used by other Wi-Fi signals.

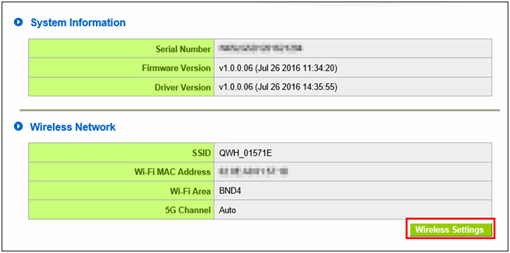

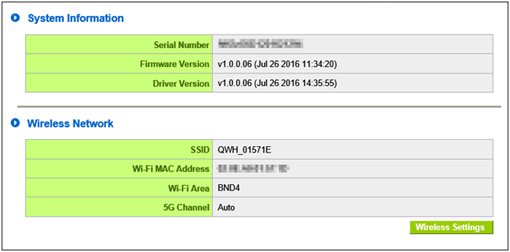

step2：In the receiver’s GUI, go to “Wireless Settings” in the homepage.


step3：Choose a different 5G Channel from the dropdown box or click Rescan then choose a less used channel.
step4：It is normal to be disconnected with the web UI after switching channels, simply refresh the page and the login screen will come up again.

3-0 Note
Whether it’s upgrading the Rx or Tx, it’s all done through the Firmware Upgrade in the QWH-1080R’s web GUI.

In the Firmware Upgrade page, firmware/driver upgrades for the Rx or Tx can be selected from the dropdown box under Mode.

※ Please follow this upgrade order: Tx driver → Tx firmware → Rx driver → Rx firmware

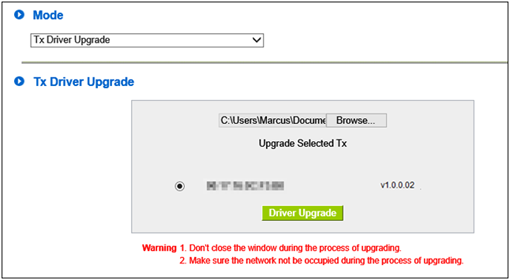

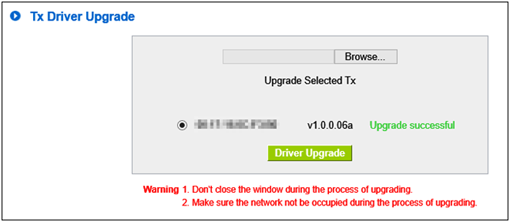

3-1 Tx Driver upgrade
Choose Tx Driver Upgrade under Mode, the connected Tx will be listed (must have power connected and already paired), browse to the correct driver file, check the Tx unit to be upgraded if there are more than one, then click the Driver Upgrade button to start the upgrade.

During the upgrading process, the LEDs will flash yellow and should only take about 10 seconds.

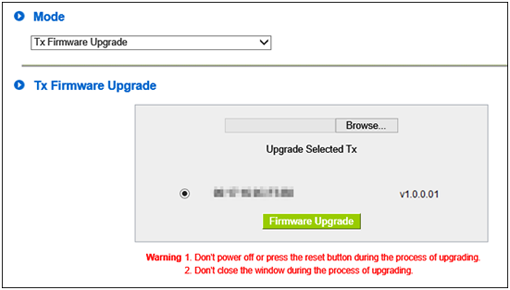

3-2 Tx firmware upgrade
Choose Tx Firmware Upgrade under Mode, the connected Tx will be listed (must have power connected and already paired), browse the correct firmware file, check the Tx unit to be upgraded, then click the Driver Upgrade button to start the upgrade.


During the upgrading process, the LEDs will flash yellow → steady yellow → flash red.
Firmware upgrade will take longer, about 2-3 minutes, when the LEDs are flashing red the upgrade is finished. It is normal for the Tx to disconnect with the Rx, normal connection will occur after the Rx has also finished upgrading.

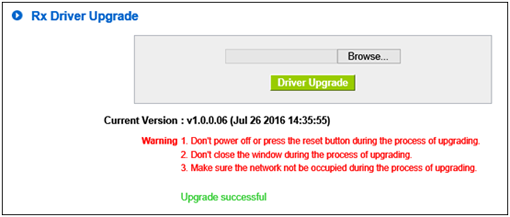

3-3 Rx driver upgrade
Choose Rx Driver Upgrade under Mode, browse to the correct driver file, then click the Driver Upgrade button to start the upgrade.


During the upgrading process, the LEDs will flash yellow and should only take about 10 seconds.

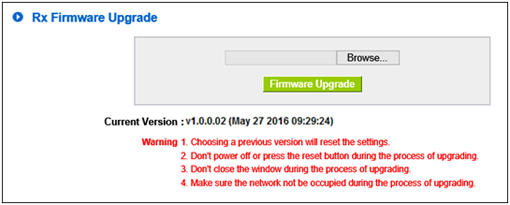

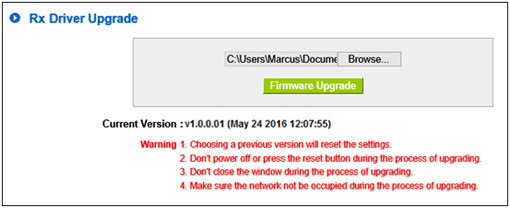

3-4 Rx firmware upgrade
Choose the Rx Firmware Upgrade mode, browse to the correct driver file then click the Firmware Upgrade button to start the upgrade.

During the upgrading process, the LEDs will flash yellow → steady yellow. Firmware upgrade process will take longer, about 2-3 minutes, when the LEDs are flashing red the upgrade is finished. It is normal for the PC to be disconnected with the Rx and would need to be re-connected after Rx has finished rebooting.

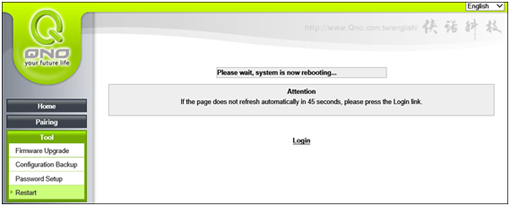

When the LEDs are steady yellow, rebooting has finished and the PC can be re-connected with the Rx. The web UI would also need to be refreshed and thereafter the new version numbers should be displayed.

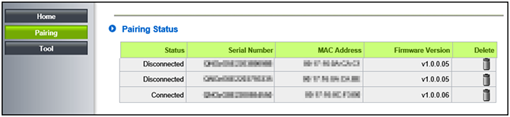

In the Pairing menu item, you’re ableto see the statuses of Tx units. If the Tx LED is steady yellow, “Connected” should be displayed under the Status column.

If your device supports MHL, an MHL adapter is needed to connect the device with QWH-1080TX using an HDMI cable.
Please use the following link to check if your device supports MHL, as well as MHL certified accessories.

http://www.mhltech.org/devices.aspx

For iOS devices, a Lightning to HDMI adapter would need to be purchased to connect with QWH-1080 using an HDMI cable.

http://www.apple.com/tw/shop/product/MD826FE/A/lightning-digital-av-adapter?fnode=97

It is normal for the QWH-1080R to flash red during startup. If the red LEDs flashes for more than a minute, please go through the following checks.

step1：Check if the USB cable is properly connected to the power adapter and the QWH-1080R’s USB connector.
step2：Make sure the power adapter is providing 5V2A power, if not, please use the included power adapter.
step3：Disconnect then re-connect the USB power cable.
step4：If the LEDs are still flashing red after going through the previous checks, please contact technical support. Do not try to open the plastic casing.

QWH-1080R will go into sleep mode after an extended period of time with no activity. Tapping the button on the Tx will wake the Rx unit up.

When you encounter that the audio is not synced with the projector or display while using a PC/laptop, please follow the steps below.

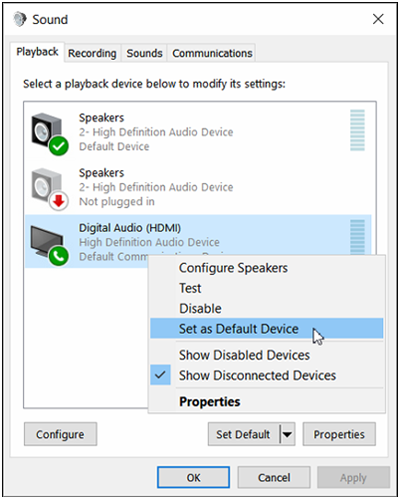

1.In the lower right hand corner of the Windows taskbar, right click on the Speakers icon and go to Playback devices.

2.Set the Digital Audio (HDMI) as the Default Device.

Due to the QWH-1080 uses 802.11ac 5G for wireless transmission, if there is another QWH-1080 or other device that use the same 5G channel, this will cause screen lag or tearing on the display. it is recommended that the QWH-1080 Rx is placed at least 2m apart from the other device.
